MIPS 150PSI Pressure Sensor 1/8 NPT
Details
The Link MIPS 150 PSI Pressure Sensor is a media-isolated pressure transducer designed to provide accurate and reliable pressure measurement in demanding automotive environments. Featuring a rugged stainless steel construction and a compact design, it is ideal for monitoring fuel, oil, coolant and other compatible fluid pressures in motorsport and performance applications.
Models Supported | All Link ECUs. Other aftermarket ECUs with analogue pressure sensor inputs. |
Warnings | Requires a regulated 5 V sensor supply from the ECU. Install using appropriate thread sealant suitable for the application. Ensure the sensor pressure range is appropriate for the system being monitored. |
Features
Quality Honeywell sensor, Rugged Stainless Steel Construction
1/8 NPT, 22mm hex
Includes connector kit (3-Way Metri-Pack 150)
Rated from -40ºC to 125ºC
5V Supply (4.75V to 5.25V)
0.5V to 4.5V Output voltage
Suitable for use with oil, petrol, ethanol, diesel, coolant, water.
Specifications
Highlights | The Link MIPS 150 PSI Pressure Sensor has the following specifications: Genuine Honeywell MIP Series pressure sensor. Pressure range: 0 to 150 psi. 1/8"-27 NPT male thread. Stainless steel construction. Media-isolated sensing element. Ratiometric 0.5 V to 4.5 V analogue output. Operating temperature: -40degC to +125degC. Supplied with Metri-Pack 150 connector kit. |
Product Dimensions | 45mm(L)x25mm(W)x25mm(H) 1.77in(L)x0.98in(W)x0.98in(H) |
Product Weight | 25 grams (0.88 ounces) |
Electrical | Operating Voltage Range: 4.75-5.25V Maximum Input Voltage: 40V Maximum Continuous Current Draw: 7.5mA |

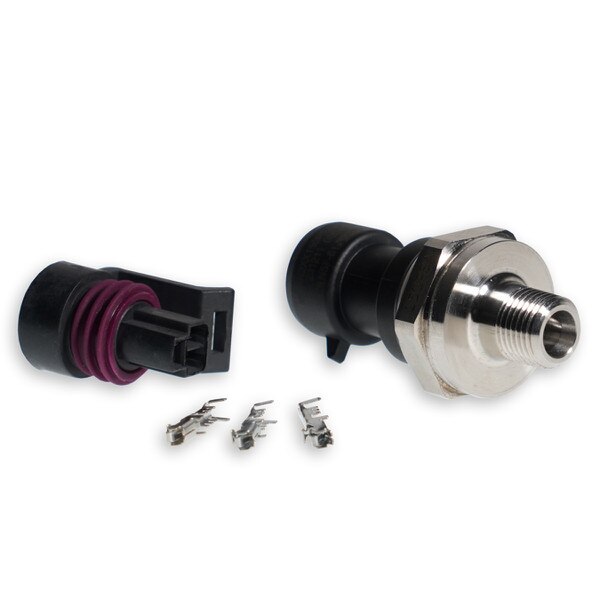

What's in the Box | MIPS 150PSI Pressure Sensor 3-way Metri-Pack 150 Connector Kit Printed Accessory instructions |
PCLink Calibration Name | "1000 kPa (150 PSI) TI Sensor" |
Raw Calibration Specs | 0.5V = 0kPa, 4.5V = 1034.21kPa |
Connector | 3-way Metri-Pack 150 Connector Kit (PN 101-0130) |
